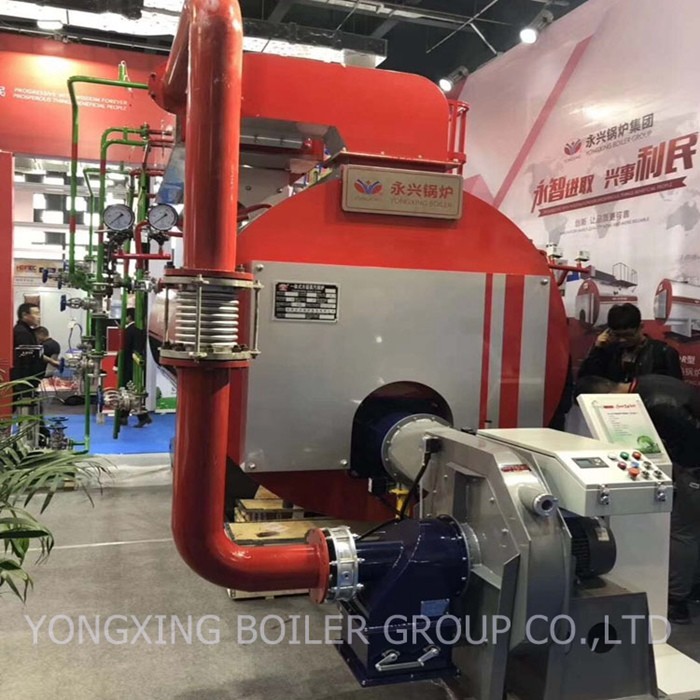

10 Ton Wood High Efficiency Gas Steam Boiler Heating System / Electric Steam Boiler
High Efficiency Gas Steam Boiler Features:
As long as the boiler body, burner, instrument, connection flue.Condenser, water tank, water pump, cylinder, deaerator, circulator softener, etc.
The boiler with complete combustion, small emissions of pollution, high thermal efficiency, simple and quick operation, is currently the most energy-saving, environmental protection, efficient products, is also the most outstanding heating equipment.
High Efficiency Gas Steam Boiler is widely used in food, clothing, textile, petrochemical and machinery manufacturing industries.
High Efficiency Gas Steam Boiler Advantages
1. Adopt horizontal full wet back structure, integrated design, reduce boiler room area, convenient for transportation.
2. The design of large furnace and screw pipe increases the heating area of the furnace, increases the heat absorption of the furnace, and reduces energy consumption
3. Equipped with various safety interlock protection devices, such as over temperature, water shortage, etc., to ensure the safe operation of the boiler.
4. Adopt advanced PLC technology and LCD to display the working condition, which is convenient to operate and understand the work progress.
5. Condensing waste heat recovery device can absorb the exhaust from the boiler and improve energy efficiency.
6.High Efficiency Gas Steam Boiler can realize the use of multiple boilers in parallel, automatically select the number of operating units, and allocate the compound of each boiler.
High Efficiency Gas Steam Boiler technical datasheet
| Model | Output | Pressure | Temperature | Fuel | Temperature |
| (t/h) | (Mpa) | (ºC) | (ºC) |
| WNS0.5-0.7/1.0/1.25-YQ | 0.5 | 0.7/1.0/1.25 | 170/184/194 | heavy oil/light oil, natural gas/LPG/city gas | 20 |
| WNS0.7-0.7/1.0/1.25-YQ | 0.7 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS0.8-0.7/1.0/1.25-YQ | 0.8 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1-0.7/1.0/1.25-YQ | 1 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS1.5-0.7/1.0/1.25-YQ | 1.5 | 0.7/1.0/1.25 | 170/184/194 | 20 |
| WNS2-1.0/1.25/1.6-YQ | 2 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS3-1.0/1.25/1.6-YQ | 3 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS4-1.0/1.25/1.6-YQ | 4 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS5-1.0/1.25/1.6-YQ | 5 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS6-1.0/1.25/1.6-YQ | 6 | 1.0/1.25/1.6 | 184/194/204 | 20 |
| WNS8-1.25/1.6-YQ | 8 | 1.25/1.6 | 194/204 | 20 |
| WNS10-1.25/1.6-YQ | 10 | 1.25/1.6 | 194/204 | 20 |
| WNS12-1.25/1.6-YQ | 12 | 1.25/1.6 | 194/204 | 20 |
| WNS15-1.25/1.6-YQ | 15 | 1.25/1.6 | 194/204 | 20 |
| WNS20-1.25/1.6-YQ | 20 | 1.25/1.6 | 194/204 | 20 |
High Efficiency Gas Steam Boiler FAQ:
Dear friend,
Thanks for your time for scanning our products.
We need the following information to confirm the boiler model:
1.Boiler type: High Efficiency Gas Steam Boiler
2.Boiler capacity?
3. Boiler pressure?
4. Boiler application?
After confirming these questions, we will know exactly what boiler will be suitable for you and we will provide you our product details and quotation. Thank u.
It is ok to copy the question and answers directly when sending us the inquiry!
Welcome you any time!
